MotionControl axis addressing via data module BM

Insert Axis reference data CPU1500_BM_AXIS_REF from library BM_PROFINET_TIA_14bd10 into the PLC data type and insert data block BM into the program block.

Double-click at the function module BM and enter the necessary axis area, parameter HW address and first parameter HW identifier.

In the "Axis" with data type [ARRAY[x..y]] of CPU1500_BM_AXIS_REF, motion control axis area is entered under the "Array Boundaries".

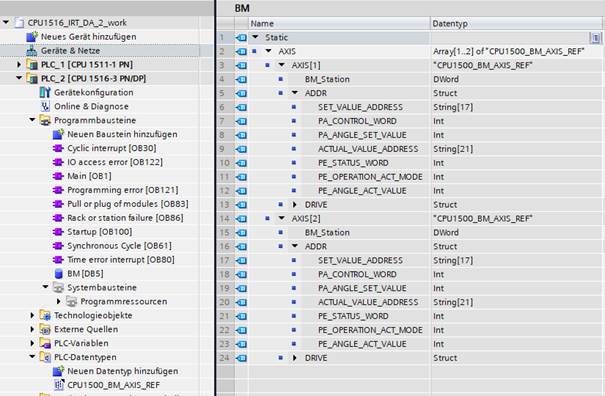

Figure 1: Slave axis setting

Under Motion Control Axis Number AXIS[] → BM_Station, the setpoint parameter Hardware ID (HW ID) of the bmaXX device is entered first.

BM_Station configuration:

The "BM_Station" defines the controller axis number and the Profinet slave identifier, the type of "BM_Station" is a DWORD (DW#16#HW_LW), (HW: high word , LW: low word).

HW is axis number of the bmaXX unit:

Dual axis device:

Axis1: HW= 0x1000

Axis2: HW= 0x2000

Single axis bmaXX device:

Axis1: HW= 0x1000

LW is hardware identifier(HW identifier) of parameter of first peripheral address, the parameter HW identifier can be found under Properties → System constants. And the value must be converted to hexadecimal.

Figure 2: Hardware configuration of CPU1500 (1st setpoint parameter with HW-identifier of 260) with a bmaXX dual axis unit

Parameter Setpoint/actual value Address creation:

Motion Control RT application Addressing

Setpoint Parameter:

Parameter 108.1: Control word (PA_CONTROL_WORD)

Actual Value Parameter:

Parameter 108.3: Status word (PE_STATUS_WORD)

Parameter 109.2: Current Operating Mode (PE_OPERATION_ACT_MODE)

Motion control IRT application with position control Addressing

Setpoint Parameter:

Parameter 108.1: Control word (PA_CONTROL_WORD)

Parameter 108.5: Target angle setpoint (PA_ANGLE_SET_VALUE)

Actual value Parameter:

Parameter 108.3: Status word (PE_STATUS_WORD)

Parameter 109.2: Current Operating Mode (PE_OPERATION_ACT_MODE)

Parameter 18.55: Position Actual value (PE_ANGLE_ACT_VALUE)

Example A:

Motion Control Parameter Addressing with CPU1500 RT Process Data Communication for a Dual Axis Unit

Step 1:

Insert parameters in sequence as setpoints from hardware catalogue of Baumüller module double axis, see figure 3.

Slot No. 1 : Parameter 108.1: Control word1_1 for axis 1

Slot No.2 : Parameter 108.1: Control word1_2 for axis 2

Insert parameters in sequence as actual values from hardware catalogue of Baumüller module double axis

Slot No. 17 : Parameter 108.3 : Status word1_1 for axis 1

Slot No. 18 : Parameter 108.3 : Status word1_2 for axis 2

Slot No. 19 : Parameter 109.2 : Actual mode_1 for axis 1

Slot No. 20 : Parameter 109.2 : Actual mode_2 for axis 2

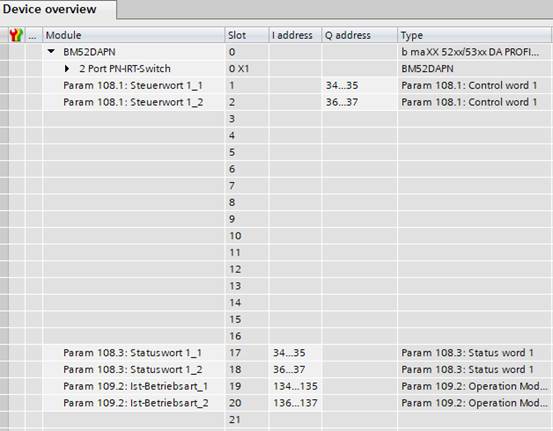

Figure 3: bmaXX Units Dual Axis RT Parameter Addressing of CPU1500

Step 2:

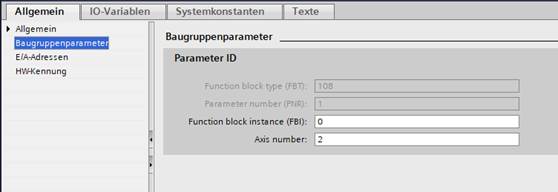

All parameters of double axis number 1 must be set under Properties → General → Assembly parameters, see figure 4.

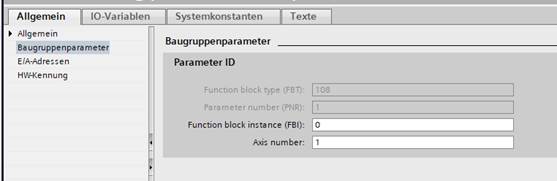

Figure 4: Settings for the Double axis unit Axis number 1

Step 3:

All parameters of double axis number 5 must be set under Properties → General → Assembly parameters, see figure 5.

Figure 5: Settings for the Double axis unit Axis number 2

Step 4:

When setting the process data exchange in the RT Bus System, all parameters of the process image must be set under Properties → General → I/O Addresses: Deactivate clock-synchronous operation, set organisation block with OB1 and process image with TPA1 or Automatic update.

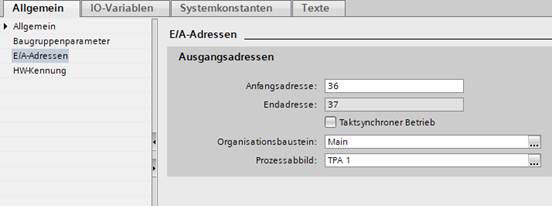

Figure 6: Process image of RT Bus System

Step 5:

Baumüller bmaXX device defines HW-identifier of 1st parameter setpoint or 1st parameter periphery address as Baumüller station hardware identifier for acyclic data communication. The hardware identifier can be found under Properties → 1st parameter setpoint → General → Hardware identifier or under Properties → System constants → 1st parameter setpoint → Hardware identifier.

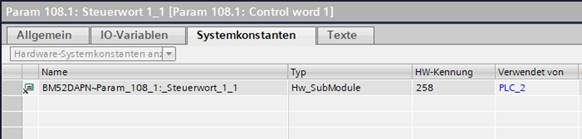

Figure 7: Parameter HW ID

Example B:

Motion Control Parameter Addressing with CPU1500 IRT Process Data Communication for a Dual Axis Unit

Step 1:

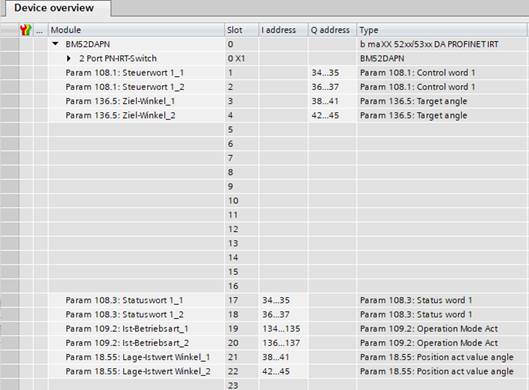

Insert parameters in sequence as setpoints from hardware catalogue of Baumüller module double axis, see Figure 8.

Slot no.1 : Param 108.1 : Control word 1_1 for axis 1

Slot no.2 : Param 108.1 : Control word1_2 for axis 2

Slot no.3 : Param 108.5 : Target angle_1 for axis 1

Slot no.4 : Param 108.5 : Target angle_2 for axis 2

Insert parameters in sequence as actual values from hardware catalogue of Baumüller module double axis

Slot No. 17 : Parameter 108.3 : Status word1_1 for axis 1

Slot No. 18 : Parameter 108.3 : Status word 1_2 for axis 2

Slot No. 19 : Parameter 109.2 : Actual mode_1 for axis 1

Slot No. 20 : Parameter 109.2 : Actual mode_2 for axis 2

Slot No. 21 : Param 18.55 : Position actual value angle_1 for axis 1

Slot No. 22: Param 18.55 : Position actual value Angle_2 for axis 2

Figure 8: bmaXX devices dual axis IRT parameter addressing of CPU1500

Step 2:

All parameters of double axis number 1 must be set under Properties → General → Assembly parameters, see Figure 4.

Step 3:

All parameters of double axis number 2 must be set under Properties → General → Assembly parameters, see figure 5.

Step 4:

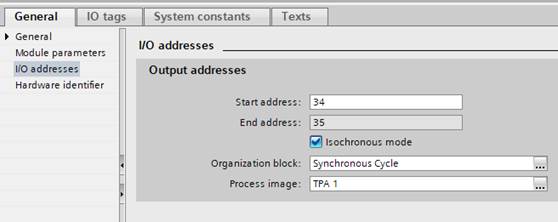

When setting Process Data Exchange in the RT Bus System, all parameters of Process Image must be set under Properties → General → I/O Addresses: Activate clock-synchronous operation, set organisation block with OB61(Synchronous Cycle) and process image with TPA1. Synchronise process image of inputs SYNC_PI and synchronise process image of outputs SYNC_PO must be programmed in OB61, without programming no cyclic data is exchanged, the two process images find extended instructions at Instructions

Figure 8: Process image of IRT Bus System

Step 5:

Baumüller bmaXX device defines HW-identifier of 1st parameter setpoint or 1st parameter periphery address as Baumüller station hardware identifier for acyclic data communication. The HW identifier can be found under Properties → 1st Parameter Setpoint → General → HW Identifier or under Properties → System Constants → 1st Parameter Setpoint → HW Identifier, see Figure 7.

Example C:

Motion control axis parameterisation reference under Siemens Tia Portal Baumüller device configuration with CPU1500.

Step 1:

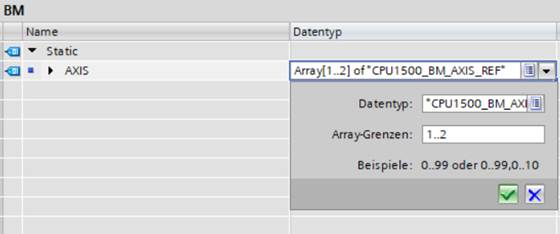

Open the function module BM and set number 1..2 at array limits for motion control axis number 1 and 2

Step 2:

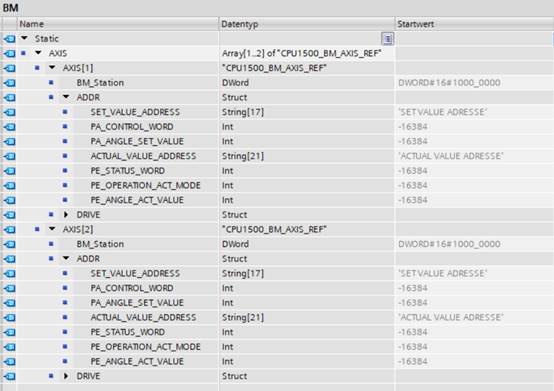

Activate ADDR parameter range under Axis[1] and Axis[2]

Step 3:

Set double axis number 1 as motion control axis 1 and double axis number 2 as motion control axis 2 and Open bmaXX device parameter window set under Devices&Networks → Device overview.

Step 4:

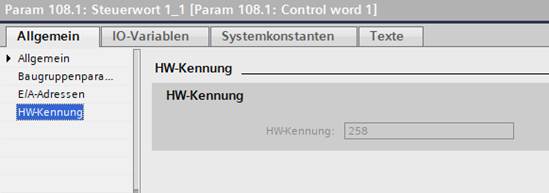

Read the hardware identification of the bmaXX unit from the 1st setpoint value or Param 108.1 Control word 1_1 under Properties → General → HW identification.

HW-Identifier = 258 / 0x102

Step 5:

Sort in all set parameters and start address for motion control axis number 1 and axis 2.

All parameters for motion control axis number 1

Setpoint

Param 108.1: Control word 1_1 and start address: 34

Param 108.5: Target angle_1 and start address: 38

Actual value

Param 108.3: Status word1_1 and start address: 34

Param 109.2: Actual mode_1 and start address: 134

Param 18.55: Position actual value Angle_1 and start address: 38

All parameters for motion control axis number 2

Setpoint

Param 108.1: Control word1_2 and start address: 36

Param 108.5: Target angle_2 and start address: 42

Actual value

Param 108.3: Status word1_2 and start address: 34

Param 109.2: Actual mode_2 and start address: 136

Param 18.55: Position actual value Angle_2 and start address: 42

Step 6:

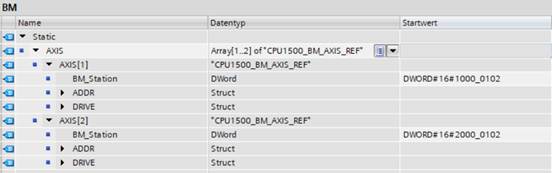

Enter hardware identifier at BM_Station for motion control axis number 1 and 2

Axis [1]: BM_Station = 0x1000_0102

Axis [2]: BM_Station = 0x2000_0102

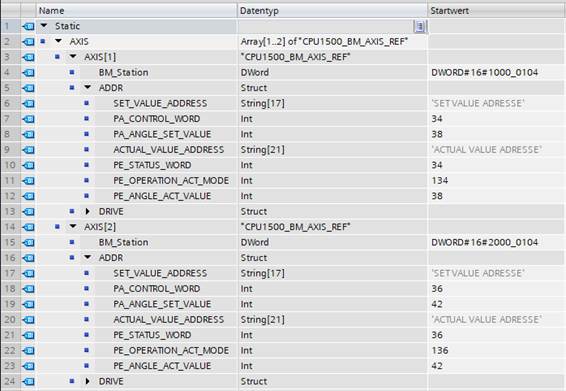

Step 7:

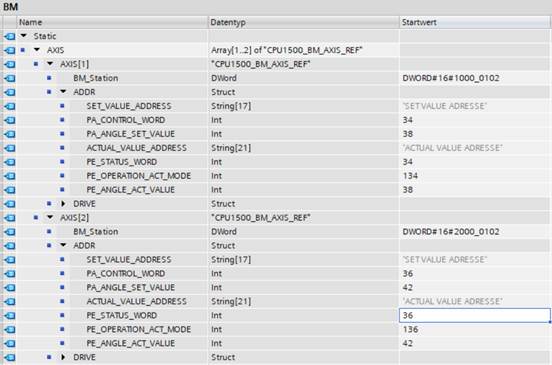

Enter parameter adress in the function module BM

For AXIS[1]:

Setpoint adress:

PA_CONTROL_WORD = 34

PA_ANGLE_SET_VALUE = 38

Actual value adress:

PE_STATUS_WORD = 34

PE_OPERATION_ACT_MODE = 134

PE_ANGE_ACT_VALUE = 38

For AXIS[2]:

Setpoint adress:

PA_CONTROL_WORD = 36

PA_ANGLE_SET_VALUE = 42

Actual value adress:

PE_STATUS_WORD = 36

PE_OPERATION_ACT_MODE = 136

PE_ANGE_ACT_VALUE = 42
