BM_STOP



Description

The following drive states are stopped by the Motion Control FC BM_Stop:
Homing, Discrete Motion, Continuous Motion and Synchronized Motion.

Attention:

Movement commands of synchronized motion in the status Stopping is not possible.



Parameter Input

Data Type

Description

Execute

BOOL

Increasing edge starts the Stopping

Deceleration

REAL

Maximum delay to stop the axis; Default [Inc/msē]



Parameter Output

Data Type

Description

Done

BOOL

Stop is executed

Done = TRUE as long as Execute = TRUE.

Busy

BOOL

Parameter read/write active

Error

BOOL

Parameter read/write error

ErrorID

WORD

Communication ErrorID-Siemens error list



Parameter

Input and output

Data Type

Description

Axis

UDT

BM Motion Control axis variable



Description

The following drive states are stopped by the BM_Stop command: Homing, DiscreteMotion, ContinuousMotion and SynchronizedMotion.
The axis is switched into the stopping status in order to stop it. As soon as the axis was stopped and the input Execute=FALSE, the axis is switched into the standstill status.

Edge-sensitive execution:
The input Execute must be set from 0 to 1 in order to execute the command. Then the command is executed and the result Done signals Execute = TRUE at the input.



Status message via BM_ReadStatus:
From status: Standstill, Homing, DiscreteMotion, ContinuousMotion, SynchronizedMotion.

To status: Stopping Standstill.



Note:

Stopping to a defined position is not possible.

A command from "BM_Stop" must not be activated before a command from another function block has been not successfully executed.

If an error occurs during the command execution, the error must be reset with "BM_Reset". Function block command will be executed successfully at

"BM" .AXIS [x] .DRIVE.BM_AXIS_STATUS.ParmRW_Active = 0.





Input Execute:

The rising edge (FALSE -> TRUE) initiates the command BM_Stop. The axis is switched into the drive status Stopping and is stopped.

The axis remains in the drive state Stopping until the axis is stopped at the input Execute = TRUE. After this the input Execute = FALSE and the axis change into the drive state from stopping to standstill.

See example 1

Input Deceleration:

Drive delay, resolution: Inc/msē.

BM_Velocity: (speed control)

Standard speed =3276 [Inc/ms] accordant to maximum speed

Braking time = 3276 [Inc/ms] / Deceleration.

Deceleration minimum: 0.00546[Inc/msē]

BM_MoveAbsolute / BM_MoveRelative / BM_Home:

Deceleration minimum: 0.07 Inc/msē

Deceleration maximum: 655.35 Inc/msē

Conversion to U/sē at Inc / msē:

Deceleration [U/sē] =

Deceleration [Inc / msē] * 1 [revolution] / 65536 [Inc] * 1000 000[msē] / 1 sē



Output Done:

Done = TRUE: Stop is executed at the input Execute = TRUE.

Output Busy:

TRUE:  The service communication for the parameter Read/Write is active.

FALSE: Not active.

Output Error:

TRUE: An error at the service communication for the parameter Read/Write is available. See Error Info. Refer to S7 Description.

FALSE: No error active.

Output ErrorID:

The information of service communication error (for detailed information refer to S7 Description)



Input and output Axis:

UDT type symbolic BM Motion Control axis variable.

During the programming with the template data module DB5 (symbolic "BM" must be written with the following symbol text: "BM".AXIS[x] (x is drive axis number).

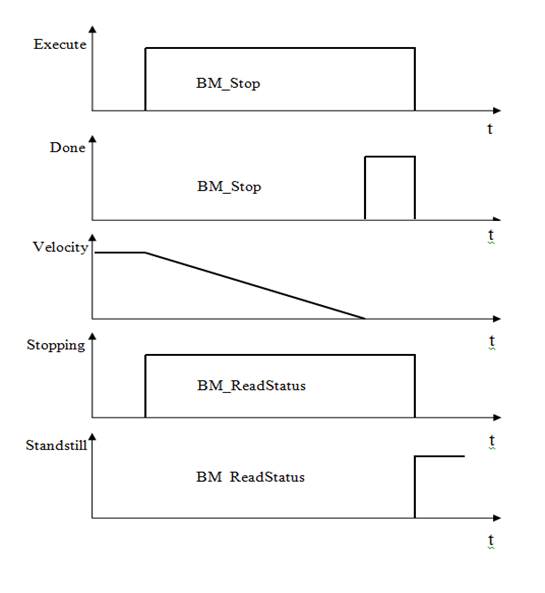

Example 1: Axis is stopped with BM_Stop – and the input Execute remains TRUE
