Description
This function is used for BM Motion Control to read the extended axis status.
Parameter Input |
Data Type |
Description |
Execute |
BOOL |
Increasing edge begins reading the extended status of the axis |
Parameter Output |
Data Type |
Description |
Done |
BOOL |
Reading of the extended status without errors is completed |
Busy |
BOOL |
The reading of the extended status still is busy |
Error |
BOOL |
Parameter read/write error; ErrorID is valid |
ErrorID |
DWORD |
Communication ErrorID-Siemens error list |
AxisError |
BOOL |
Axis reports an error |
AxisWarning |
BOOL |
Axis reports a warning |
PulseEnabelInputOk |
BOOL |
Digital input pulse enable is closed |
QickStopInputOk |
BOOL |
Digital input quickstop is closed |
SafetyRelayOk |
BOOL |
Safety relay is without errors |
DC_LinkOk |
BOOL |
DC-link is without errors |
ReadyForUse |
BOOL |
Axis reports Ready for operation |
Parameter Input and output |
Data Type |
Description |
Axis |
UDT |
BM Motion Control Axis Variable |

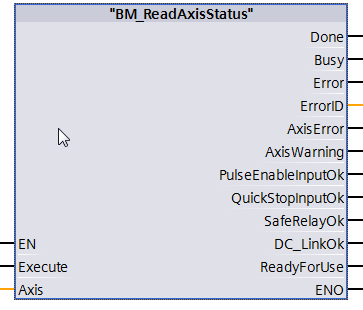

Call-up BM_ReadStatus
From status: All states.
Recommended task is: OB1.
Edge-sensitive version:
Rising edge at Execute begins to read the extended status of the drive.
If reading was completed without errors the output Done is set to TRUE and the
status information at the outputs are valid.
Note:
A command from "BM_ReadAxisStatus" must not be activated before a command from another function block has been not successfully executed.
If an error occurs during the command execution, the error must be reset with "BM_Reset". Function block command will be executed successfully at
"BM" .AXIS [x] .DRIVE.BM_AXIS_STATUS.ParmRW_Active = 0.
Input Execute:
If the edge rises at Execute the reading of the status begins.
Output Done:
TRUE: Reading status completed without errors. The output values are valid.
FALSE: Not active.
Output Busy:
TRUE: The reading of the status still is active.
FALSE: Not active.
Output Error:
TRUE: An error at Service Communication for the Parameter Read/Write is existent.
Refer to S7 Description for information on the valid ErrorID and the error information.
FALSE: No error active.
Output ErrorID:
The information of Service Communication Error (more details – refer to S7 description)
Output AxisError:
TRUE: The axis reports errors.
FALSE: No error.
Output AxisWarning:
TRUE: The axis reports a warning.
FALSE: No warning.
Output PulseEnabelInputOk:
TRUE: Digital input for pulse enable is closed.
FALSE: Digital input for pulse enable is not closed.
Output QuickStopInputOk:
TRUE: Digital input for quickstop is closed.
FALSE: Digital input for quickstop is not closed
Output SafetyRelayOk:
TRUE: Safety relay is without errors or not existent.
FALSE: Safety relay error.
Output DC_LinkOk:
TRUE: DC-link is loaded.
FALSE: DC-link is not loaded.
Output ReadyForUse:
TRUE: Axis is ready for operation.
FALSE: Axis is not ready for operation.
Input and output Axis:
UDT type symbolic BM Motion Control Axis Variable.
During the programming with the template data module DB5 (symbolic „BM“) the following symbol text must be written: „BM".AXIS[x] (x is drive axis number).
