TB_BITS_OF_DWORD

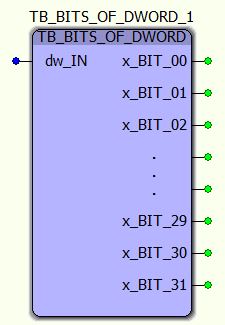

Representation in FBD

General Information

This function block extracts a Bit from a DWord. The individual bits are provided at the output.

Recommended task: Cyclic / Event
Libraries used: none

InOut Parameter

none

Input Parameter

Marking: Data type: Description:
dw_IN DWORD Input DWord

Output Parameter

Marking: Data type: Description:
x_BIT_00 .. 31 BOOL Output Bit 0 .. 31
