Smart drive solutions for metalworking

Baumüller has many years of expertise in equipping drive systems for sheet metal and metalworking machinery. Baumüller offers both complete drive systems and individual components, such as motors and servo drives, for a variety of press types like servo-hydraulic presses, servo press brakes and servo-eccentric presses.

Our goal is to reduce production costs and increase energy efficiency, to give your machines a competitive advantage.

Umformtechnik

Servo-hydraulic presses

Servo-hydraulic presses

Servo-eccentric presses

Servo-eccentric presses

Servo press brakes

Servo press brakes

Your technology partner for forming machines

Baumüller supports the engineering process for manufacturers or end users of sheet metal processing machines with modern simulation technology, and fully designs drives, machine controllers, and software to meet customer specifications In addition, we can show you how you can use our technological solutions to sustainably shrink the CO2 footprint of your production.

From refurbishment to modernization – Baumüller offers the perfect drive solution.

Powerful drive solutions for more power and energy efficiency

bmaXX5x00+DST2

High-performing drive components are used in metal forming, in particular. One combination, consisting of a b maXX servo inverter and a DST2 series high-torque motor, is primarily suited for press applications with high requirements for nominal and maximum torque.

DST2 high-torque motors achieve very high maximum torque levels, to deliver the power needed for the pressing process. The motors can be perfectly adapted to the press’s requirements thanks to different shaft and flange options.

New mono devices in the b maXX 6500 family are even more compact, thanks to their excellent power density. This makes it possible to have even smaller, and overall fewer control cabinets. Where two size 7 servo drives were required for a press application in the past, for instance, thanks to the higher performance of the new b maXX 6500 inverter generation, two size 6 devices can now be used.

servomotors

We offer you the right solution for every application requirement. We have developed a variety of servo motor series to ensure this. These have been in use by numerous customers for many years and differ enormously with respect to their performance data. DSD2 servo motors are powerful, dynamic and have a very wide range of nominal speeds. On the other hand, DSC servo motors are impressively compact.

reduce footprint

Servo-hydraulics: Energy-saving pressure and volume flow regulation

When a flexible solution is needed to control pressure and volume flow rate, a servo-hydraulic drive is the right answer.

Baumüller's servo pump combines the advantages of hydraulic power transmission with the benefits of electric servo drive technology. Servo pump drives for the hydraulic supply consist of a fixed displacement pump driven by a servo motor. The flow rate and pressure can be controlled precisely by highly dynamic changes to the motor speed. If neither flow rate nor pressure are required, the motor stops and does not consume any energy.

servo eccentric presses

Servo-eccentric presses

Compared with conventional hydraulic or mechanical presses, servo-eccentric presses provide considerable advantages, such as increased productivity and higher product quality. Furthermore, they offer the user enormous additional flexibility. Consisting of both control and drive technology, the Baumüller system solution gives you the advantages of a servo press while at the same time providing an instantly usable and flexible solution for your machine.

Learn more

servo hydraulic presses

Servo-hydraulic presses

Hydraulic presses have substantial advantages compared to conventional mechanical presses, such as higher tonnages, longer stroke lengths and a compacter design. Further­more, they offer the user enormous additional flexibility. However, conventional hydraulic presses fed by standard motors have poorer energy efficiency. With the Baumüller drive solution consisting of highly dynamic servo motors and compact converters, you not only benefit from the advantages of the hydraulics, but also from the efficiency of the servo drive technology.

Learn more

servo press brakes

Press brakes

The most important criteria for die folding machines and accordingly press brakes is high machine availability, as well as speed while maintaining excellent precision. The drive of the main axis used to move the plunger is moved either electrically or hydraulically. Whether you choose fully electric or servo-hydraulic main drive – with Baumüller, you benefit from our many years of experience as a drive and automation manufacturer in machine equipment.

Learn more

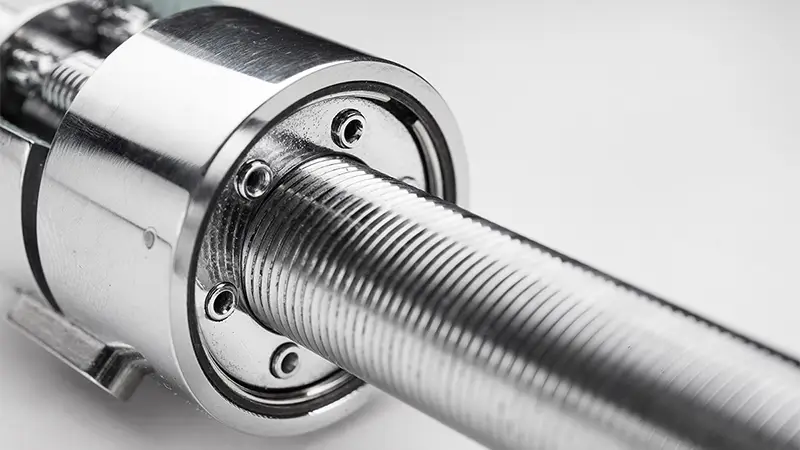

Spindle presses

Variable press forces and flexible stroke rates are some of the key advantages of spindle presses. With the Baumüller drive solution, consisting of highly dynamic servo motors, powerful direct drives, and compact converters, you benefit from highly synchronized motor activation. This is a precondition for precision and repeatability in your application.

Link to atrticle ► Time to make the change – Understanding and successfully implementing direct drive technology

An ingenious solution: From metal wool to metal fiber yarn

In cooperation with Baumüller and the Technical University of Dresden, Deutsche Metallfaserwerk Dr. Schwabbauer GmbH & Co. KG has developed a yarn winder for the production of metal fiber yarn ...

Complete solution from a single source for highly dynamic servo presses

Baumüller equips the Simpac MX and SX servo press series with highly dynamic drive and automation solutions In spring 2019, Baumüller signed a cooperation agreement with press manufacturer Simpac....

Sparks are flying – precisely and decentrally positioned

It's the surface that counts: the surfaces of automotive body parts have to be perfect. This is achieved using high-precision textured rolls that prepare the sheet metal parts for processing. The ...

High-precision 3D eye rim bending machine

Baumüller and Schüssler Technik modernize high-precision 3D eye rim bending machine Highly precise special machines from the market leader Schüssler Technik ensure easy, modern production of eye r...

References:

Are you interested in buying our products?

Write us a message, our sales experts will be happy to advise you.

Our drive electronics for the metal industry:

Our motors for the metal industry:

Our controls for the metal industry:

Our services for the metal industry:

You might also be interested in

Machine module servo pump

ProSimulation

Downloads

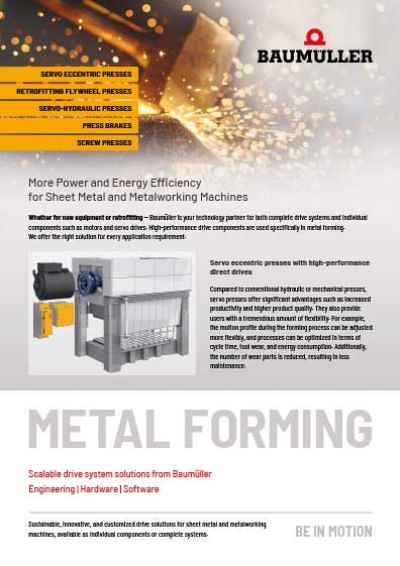

Brochure / Flyer
