Control platforms

b maXX controllers from Baumüller let you consistently implement the concept of scalability and modularity, enabling flexible adaptation to the latest requirements for machine construction. Depending on the application, we can support you in the development of central, modular decentralized and hybrid control architectures.

Our control platforms are also suitable for highly synchronized drives and are fully integrated into the Engineering Framework ProMaster. There you will find all the applications required for the creation of the machine and system topology, the fieldbus and I/O configurators as well as applications such as the PROPROG 5 programming environment, ProCAM cam editor and many more.



Decentralized concept decentralized conceptTechnology function directly in the drive, e.g. for servo-hydraulics in injection molding machines

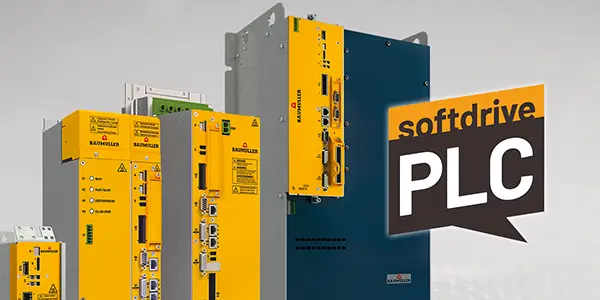

b maXX PLC di:
Highly synchronized motion control with drive-integrated PLC

The drive-integrated b maXX PLC di enables highly synchronized motion control, maximum speeds, and a modular layout of machines and plants.

  • Additional hardware in the controller
  • Higher performance: minimum cycle times up to 250 μs for highly synchronized motion control
  • Modular machines: central or decentralized topologies are possible
  • Maximum connectivity: ready for future requirements and IoT
  • Data from the drive are provided by an OPC server interface with your own and external systems

Centralized concept Centralized conceptTechnology function in the control unit, e.g. for web processing machines

b maXX PLC mc:
PLC & PC combined

Combines industrial PC and classic PLC control on joint hardware and apart from the actual control tasks, also enables use of the Windows operating system.

  • Control cabinet PLC
  • Can be used universally for virtually any automation task
  • HDMI interface type C
  • IP20 stainless steel housing with mounting clips
  • WIN 10 IoT 2019 LTSC Enterprise
  • Maximum connectivity: ready for future requirements and IoT
  • Large internal memory enables the storage and preprocessing of data



Downloads

Vorschau AutomationVorschau Automation
Brochure / Flyer
2503

Automation

Automation concepts, control technology, field bus communication,
ProMaster, Motion Control, IoT Industry 4.0, b maXX HMI, I/O systems
