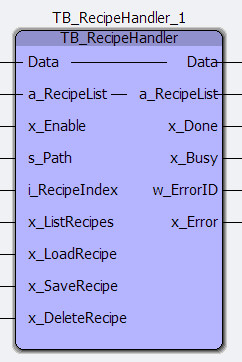

TB_RecipeHandler
TB_RecipeHandler
This block can be used to implement recipe management on a PCC via the controller
Eingänge
| Name: | Type: | Description: |
|---|---|---|
| Data | ANY | Here you have to connect the data that you want to handle with this function block |
| _File_TMPL | FILE_TMPL | With this structure, the FB is connected to the FILE_TMPL structure connected to the file blocks, which can be found in the library "TECH_FB_STRUCTS". |
| a_RecipeList | STRING_100_ARRAY | All recipes are listed in this array |
Ausgänge
| Name: | Type: | Description: |
|---|---|---|
| x_Done | BOOL | The action was accomplished successfully |
| x_Busy | BOOL | Indicates that the function block is being processed. |
| w_ErrorID | WORD | Error number of the function block: » WORD#5000: Recipe index is larger than the recipe array » WORD#9999: Recipe name is invalid or empty For all other error numbers see help of the file blocks from "SYSTEM2_PCC03_40bd03" |
| x_Error | BOOL | Block error. |
