Blocking Predetection

This library was specially developed for shredder applications and ensures reliable prevention of potential drive faults.

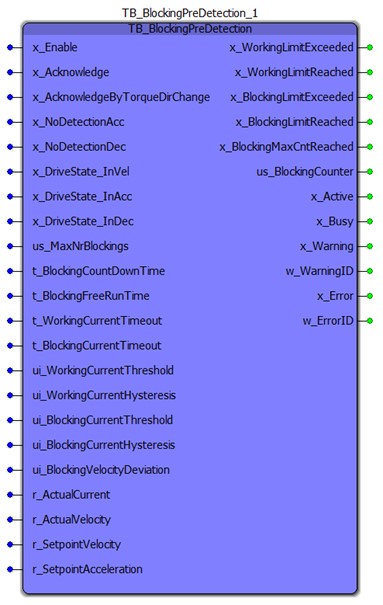

TB_BlockingPreDetection
TB_BlockingPreDetection

TB_BlockingPreDetection

The function block TB_BlockingPreDetection was specifically designed for shredder applications and ensures reliable prevention of potential drive errors, including overloads due to current or thermal energy (i²t) as well as blockages.

By continuously monitoring current and speed, this module enables proactive detection and prevention of critical operating conditions that could lead to disruptions. This helps minimize potential downtime and ensures smooth and trouble-free operation in shredder applications.

The function block provides four distinct monitoring levels:

Empfohlene Task: Cyclic / Event

Verwendete Bibliotheken: TECH_TOOLS_40bd08 oder höher

Eingänge

Marking:	Data type:	Data range:	Description:
x_Enable	BOOL	-	Release of the function block
x_Acknowledge	BOOL	-	Resets the *LimitExceeded outputs.
x_AcknowledgeByTorqueDirChange	BOOL	-	Enables automatic resetting of the *LimitExceeded outputs when the direction of rotation changes.
x_NoDetectionAcc	BOOL	-	If this input is set to TRUE, the working or blocking detection is not active in the acceleration phase.
x_NoDetectionDec	BOOL	-	If this input is set to TRUE, the working or blocking detection is not active in the deceleration phase.
x_DriveState_InVel	BOOL	-	Indicates whether the drive is in the speed state.
x_DriveState_InAcc	BOOL	-	Indicates whether the drive is in the acceleration state.
x_DriveState_InDec	BOOL	-	Indicates whether the drive is in the deceleration state.
us_MaxNrBlockings	USINT	1 .. 255	Maximum number of blockings allowed before a blocking error x_BlockingMaxCntReached = TRUE occurs.
t_BlockingCountDownTime	TIME	T > 0s	Time after which the blockage counter is counted down, provided that the current motor current is below the limit values.
t_BlockingFreeRunTime	TIME	T > 0s	Time period that the drive must run freely to reset the output x_BlockingMaxCntReached.
t_WorkingCurrentTimeout	TIME	0s	Time period after which a working current exceeded is detected.
t_BlockingCurrentTimeout	TIME	T > 0s	Time period after which a blovking current exceeded is detected.
ui_WorkingCurrentThreshold	UINT	0%	Sets the working current limit in percent of the nominal motor current.
ui_WorkingCurrentHysteresis	UINT	1%	Sets the Hysteresis of the working current limit in percentage.
ui_BlockingCurrentThreshold	UINT	0% ui_WorkingCurrentThreshold	Sets the blocking current limit in percent of the nominal motor current
ui_BlockingCurrentHysteresis	UINT	1	Sets the Hysteresis of the blocking current limit in percent.
ui_BlockingVelocityDeviation	UINT	1%	Sets the velocity deviation from the setpoint r_SetpointVelocity in percent at which velocity monitoring is triggered.
r_ActualCurrent	REAL	-	Contains the actual motor current in percent.
r_ActualVelocity	REAL	-	Contains the actual motor speed in percent, related to the nominal motor current.
r_SetpointVelocity	REAL	v >= 1%	Contains the setpoint speed of the motor in percent, related to the nominal motor current.
r_SetpointAcceleration	REAL	a >= 1%	Contains the setpoint acceleration of the motor in milliseconds.

Ausgänge

Marking:	Data type:	Description:
x_WorkingLimitExceeded	BOOL	Indicates whether the maximum working current limit has been exceeded.
x_WorkingLimitReached	BOOL	Indicates whether the working current limit has been reached and the timer started.
x_BlockingLimitExceeded	BOOL	Indicates whether the maximum blocking current limit has been exceeded.
x_BlockingLimitReached	BOOL	Indicates whether the blocking current limit has been reached and the timer started.
x_BlockingMaxCntReached	BOOL	Indicates whether the maximum number of blockings has been reached.
us_BlockingCounter	USINT	Displays the number of detected blockages.
x_Active	BOOL	Indicates whether the function block is active.
x_Busy	BOOL	Indicates whether blockage detection is active, depending on the input configuration and drive status.
x_Warning	BOOL	Indicates whether a warning has been detected and a valid w_WarningID is available.
w_WarningID	WORD	Number to identify the warning: 1 - MaxNrBlockings must be greater than 0. 2 - BlockingCountDownTime must be greater than 0s 3 - BlockingFreeRunTime must be greater than 0s 4 - WorkingCurrentTimeout must be greater than 0s 5 - BlockingCurrentTimeout must be greater than 0s 6 - WorkingCurrentTimeout must be greater than BlockingCurrentTimeout 7 - WorkingCurrentThreshold must be greater than 0%. 8 - BlockingCurrentThreshold must be greater than 0%. 9 - WorkingCurrentThreshold must be smaller than BlockingCurrentThreshold 10 - BlockingVelocityDeviation must be greater than or equal to 1% and less than or equal to 95%. 11 - WorkingCurrentHysteresis must be greater than or equal to 1% and less than or equal to 10%. 12 - BlockingCurrentHysteresis must be greater than or equal to 1% and less than or equal to 10%. 13 - SetpointVelocity must be greater than or equal to 1%. 14 - SetpointAcceleration must be greater than or equal to 1%. 15 - BlockingCurrentHysteresis disabled, SetpointVelocity or SetpointAcceleration invalid.
x_Error	BOOL	Indicates whether an error has occurred and w_ErrorID is valid.
w_ErrorID	WORD	Number to identify the error that has occurred: 1 - MaxNrBlockings must be greater than 0. 2 - BlockingCountDownTime must be greater than 0s 3 - BlockingFreeRunTime must be greater than 0s 4 - WorkingCurrentTimeout must be greater than 0s 5 - BlockingCurrentTimeout must be greater than 0s 6 - WorkingCurrentTimeout must be greater than BlockingCurrentTimeout 7 - WorkingCurrentThreshold must be greater than 0%. 8 - BlockingCurrentThreshold must be greater than 0%. 9 - WorkingCurrentThreshold must be smaller than BlockingCurrentThreshold 10 - BlockingVelocityDeviation must be greater than or equal to 1% and less than or equal to 95%. 11 - WorkingCurrentHysteresis must be greater than or equal to 1% and less than or equal to 10%. 12 - BlockingCurrentHysteresis must be greater than or equal to 1% and less than or equal to 10%.
